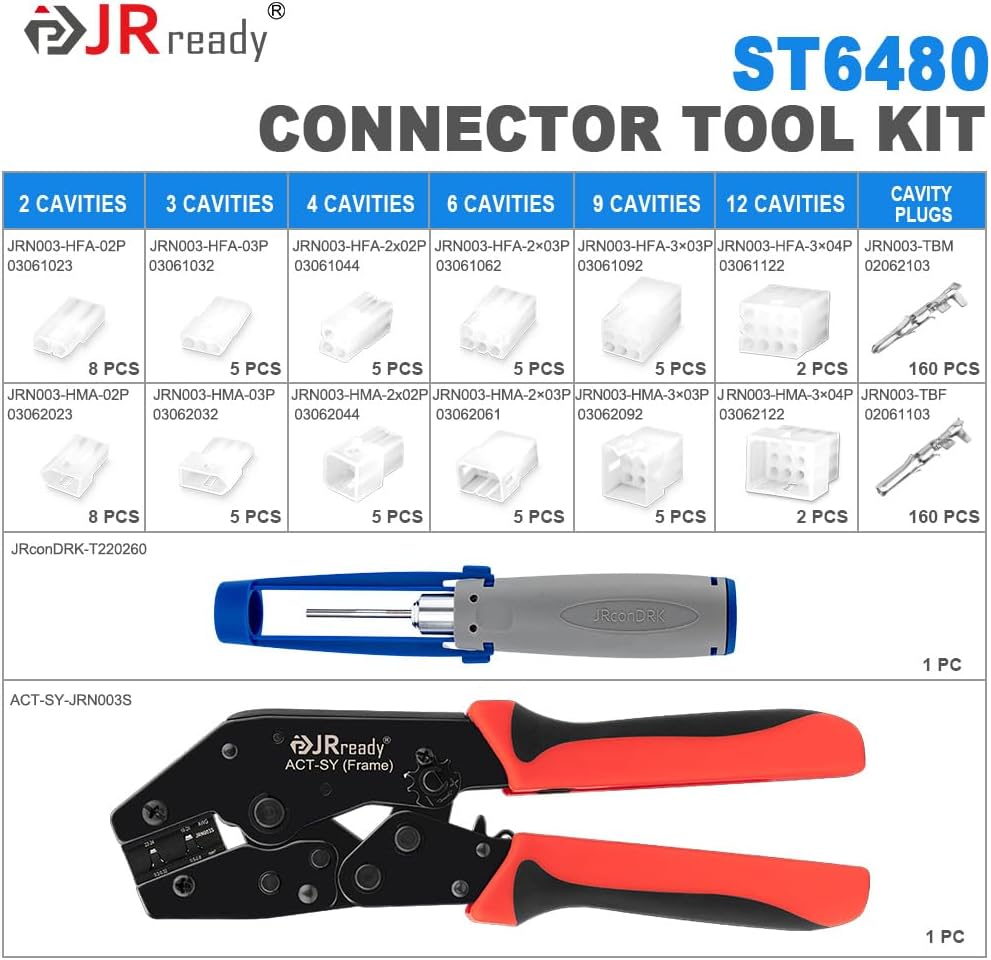

JRready ST6480 2 3 4 6 9 12 Pin Electrical Connector Plug Kit with Terminal Crimping Extractor Tool 160 sets 18-24AWG Pin Socket Molex Standard .062" Series Male Female Connector 60 sets 3.68mm Pitch
4.9 (21 items)
Limited Time Sale$78.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221602888 | Release Date | 2026/05/03 | List Price | $52.00 | Model Number | 221602888 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Housing Connector Performance】 The housing connectors is made of PA66 material, rated voltage is 250V AC/DC, operating temperature -40℃ to +105℃, the flame retardant grade is UL94-V2,. Compatible with Molex Standard .062 "Series connector-3.68MM pitch. PLEASE NOTE: The connector housing is transparent white. Exposure to air may result in slight color differences, but it doesn't affect the performance of the product. If you have any questions about this, please contact us anytime.
- 【JRready Housing Connector Design】 The housing use a snap-in design ,the buckle does not loosen or fall, easy to disassemble and assemble and supports free assembly of connectors and pin jack terminals. different shape design of the two end of socket avoid mis-matching during the assembly process.
- 【Terminal Contact】 The terminals are made of tin-plated brass for better electrical conductivity, oxidation and corrosion resistance. Dual-locking tangs help prevent backing out ensuring a strong electrical connection. Opening design reduces the insertior force and improves the insertion and extraction durability more than 100 times. Pin 1.57mm diameter, Wire range 18-22AWG(0.32mm² to 0.8mm²), rated current 5A.

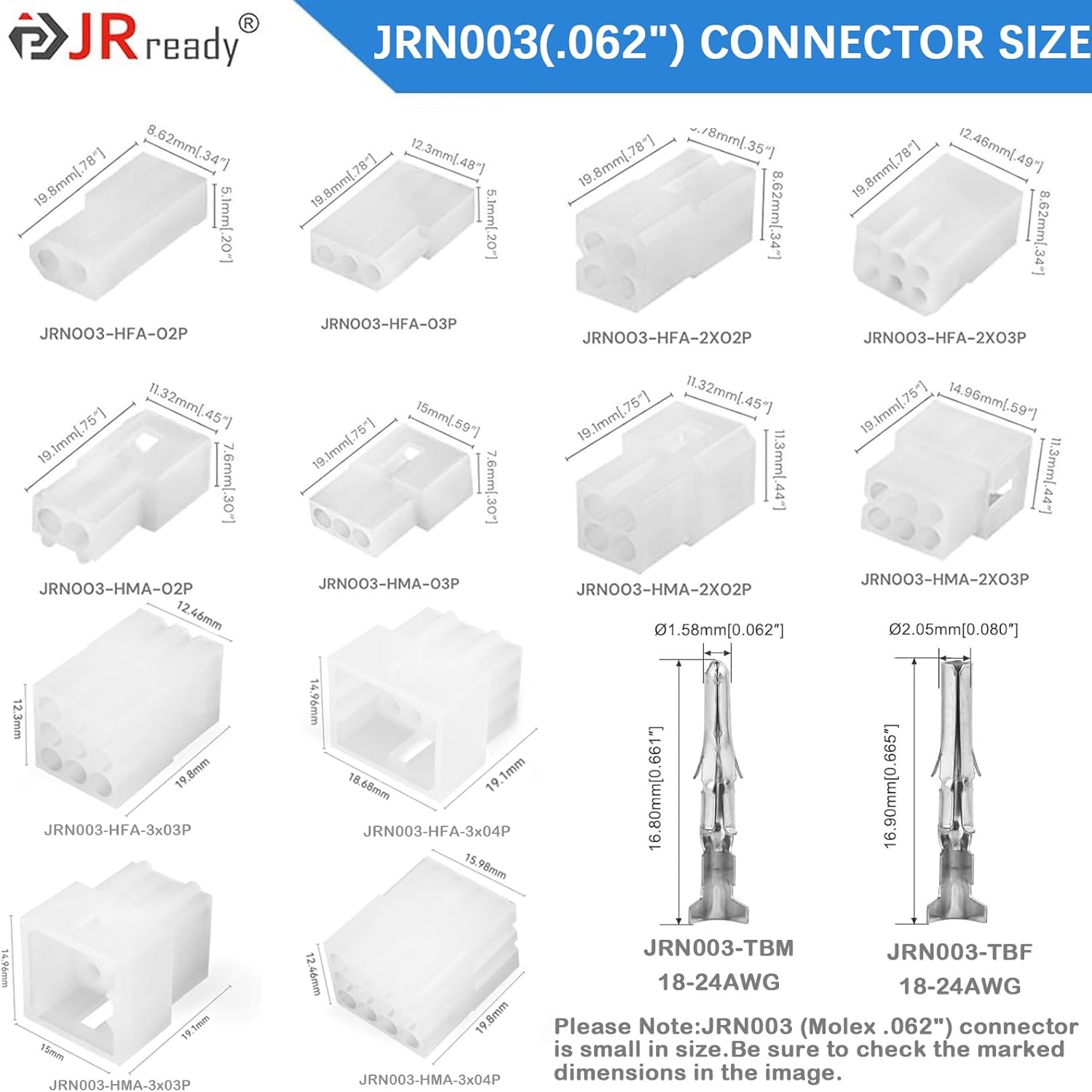

- 【Compatible with MOLEX Models】 Molex Standard .062" Series Connectors: 2 pin connector-03061023/03062023; 3 pin connector-03061032/03062032; 4pin connector-03061044/03062044; 6 pin connector-03061062/03062061; 9 pin connector-03061092/03062092; 12 pin connector-03061122/03062122; Contacts pin: 02062103 / 02062101，socket: 02061103 / 02061101.
- 【Terminal Crimping Tool】This crimp tool is suitable for wire diameter range of 22-18AWG(0.32mm² to 0.8mm²). The mold mouth of Crimps is replaceable. The Crimps with anti slip handle have a compression wheel to adjust the crimping force is very smooth and perfect,which can greatly improve work efficiency.
| Size | 2, 3, 4, 6, 9, 12 pins |
|---|---|
| Color | 062" Series Electrical Connector |
| Set Name | ST6480 |
| Grip Type | Ergonomic |
| Brand Name | JRready |
| Unit Count | 17.64 Ounce |
| Handle Type | Ergonomic |
| Item Weight | 0.95 Kilograms |
| Manufacturer | JRready |
| Model Number | ST6480 |
| Handle Material | Rubber |
| Included Components | ST6480 382Pcs Standard .062" 2 3 4 6 9 12 Electrical Connector Plug Kit |
| Manufacturer Part Number | ST6480 |
| Specific Uses For Product | automotive electrical work, general electrical repairs, DIY electronics projects |
