AC 220V Intelligent Human Body Sensor Switch PIR Motion Sensor Light Switch Electric Fan Exhaust Fan EU Plug(No Optical Control)

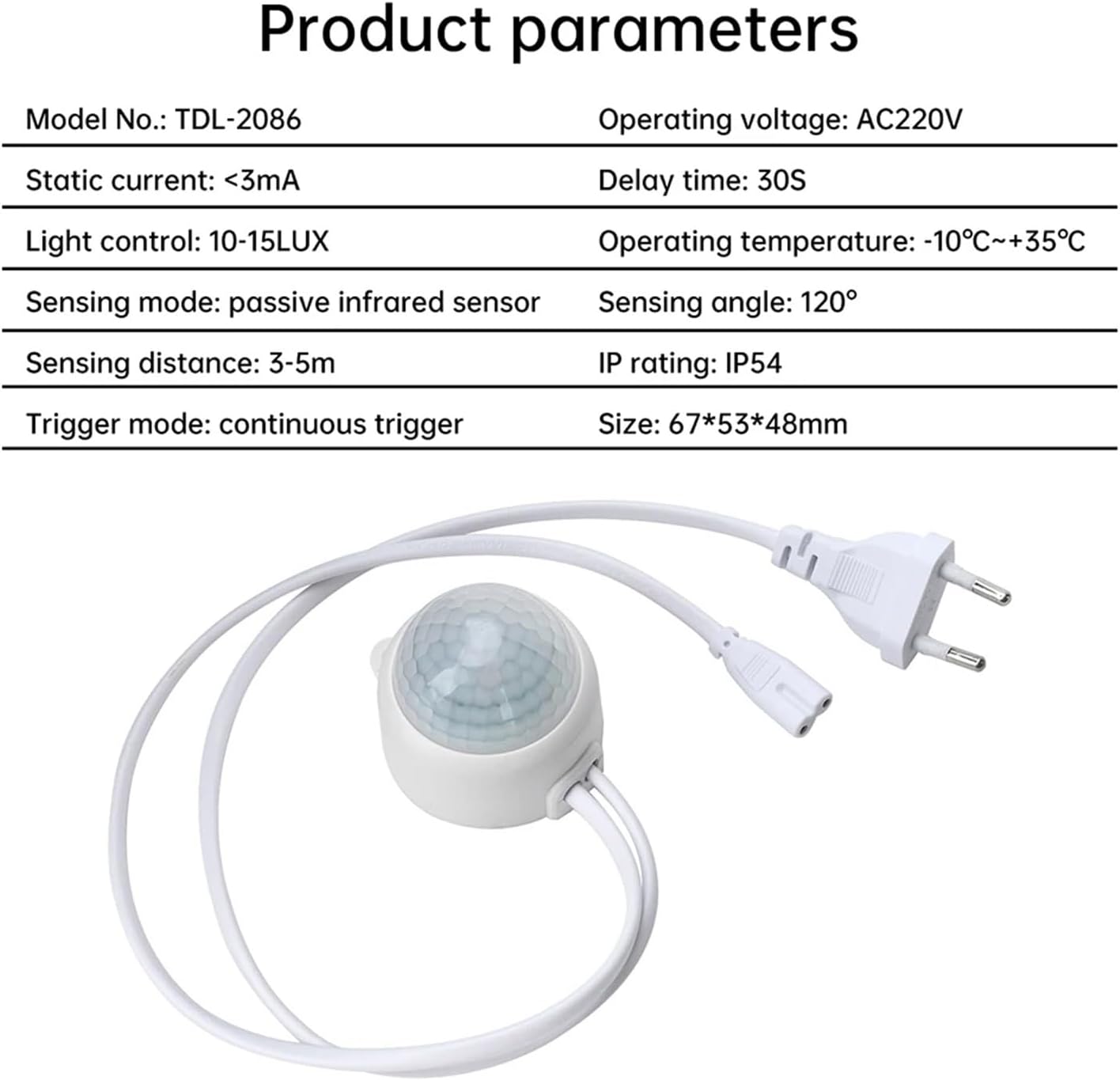

Product Features1. Automatic lighting, no need for manual control. When someone enters the sensing range, the person does not leave and remains active. The switch continues to conduct, and after the person leaves, the switch delays and automatically turns off the load.2. Compatible with various loads, incandescent lamps 1200W/energy-saving lamps 600W/fluorescent lamps 600W/LED lamps 150W/ceiling lamps 200W/exhaust fans 200W.3. High power relay with direct control of load, long lifespan and high compatibility. High frequency step-down circuit, stable current, low power consumption, no flicker or slight brightness.4. This product can be used for anti-theft alarm. It can be installed in a restricted area, and as long as someone enters the restricted area, the alarm bell will automatically sound.5. Wide range of applications: Suitable for automatic exhaust of beds, corridors, hallways, bathrooms, basements, warehouses, and other places, as well as automatic control of lighting functions for exhaust fans and other electrical appliances.Product parametersProduct model: TDL-2086Working voltage: AC220V<;3mADelay time: 30 secondsLight control: 10-15LUXWorking temperature: -10 ° C~+35 ° CInduction method: Passive infrared inductionSensing angle: 120 °Sensing distance: 3-5mIP rating: IP54Trigger mode: Continuous triggerSize: 67 * 53 * 48mmLoad power: incandescent lamp 1200W/energy-saving lamp 600W/fluorescent lamp 600W/LED lamp 150W/ceiling lamp 200W/exhaust fan 200WUsage scenarios with light control: suitable for places such as under beds, corridors, hallways, bathrooms, basements, warehouses, etc. (no sensing during the day, only sensing at night)Usage scenarios without light control: electric fans at elevator entrances in supermarkets and shopping malls, controlling lighting fixtures (all day sensing)precautions1. Please install according to the wiring diagram. After checking for accuracy, the light will turn on when the power is turned on, indicating that the induction switch is in normal working condition. The first power on requires 10-20 seconds of preheating before the product can enter the measurement and control state.2. The detection effect may be affected by environmental and other factors, such as room temperature, walking speed, etc.3. To avoid reducing product sensitivity, please do not install the product in areas with ventilation openings, heat sources, air conditioning vents, hot and cold air flow, or direct sunlight.4. This switch circuit design has a repeated triggering memory function, which means that as long as someone is active in the detection area, the switch will be continuously triggered and the delay time will be calculated again. Therefore, the delay time should be calculated from the last trigger before the human body leaves the detection area.Shipping ListHuman body sensing switch * 1Chinese and English instruction manual * 1Adhesive backing * 1Screw * 1==========High-concerned chemical : NoneCertification : ceMaterial : PlasticSwitch Type : Sensor SwitchItem Type : SWITCHESOrigin : Mainland China

• 1. High-Precision PIR Detection: Adopts advanced passive infrared technology to accurately identify human movement within the detection range (up to 30 feet, 110° wide angle), minimizing false triggers caused by pets, wind, or sunlight.
• 2. Real-Time Alert & Remote Notification: Sends instant push notifications to your smartphone via Wifi when motion is detected, allowing you to stay informed about home activity even when you’re away from home.
• 3. Flexible Smart Home Integration: Compatible with major smart home ecosystems and voice assistants, enabling seamless linkage with smart lights, cameras, and alarms—automatically turning on lights when you enter a room or triggering alerts for unusual activity.
• 4. Adjustable Settings & Weather Resistance: Features customizable sensitivity levels and delay time (10s-5min) to fit different scenarios.
• 5. Easy Installation & Long Battery Life: Tool-free mounting with included adhesive or screws—no complex wiring needed. Powered by 2 AA batteries (not included) for up to 12 months of continuous use, with low-battery alerts via app to avoid downtime.
